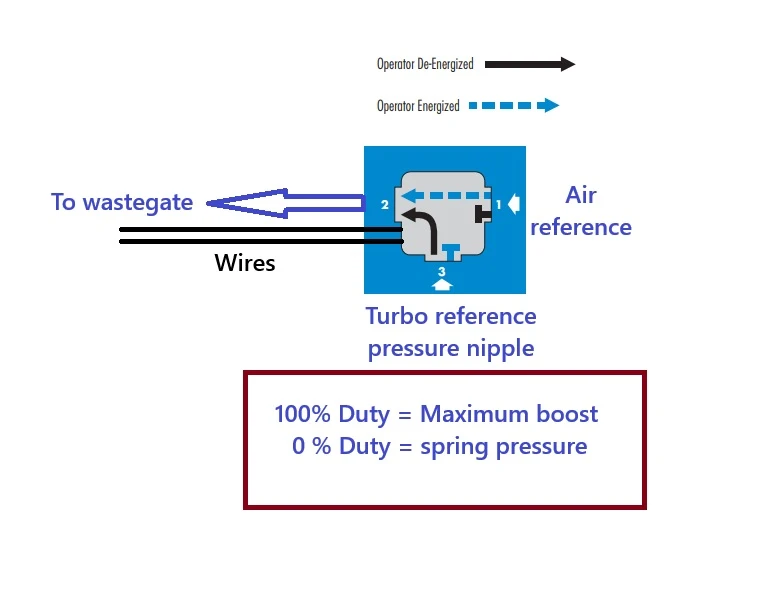

Mac valve 3 way fitting guide

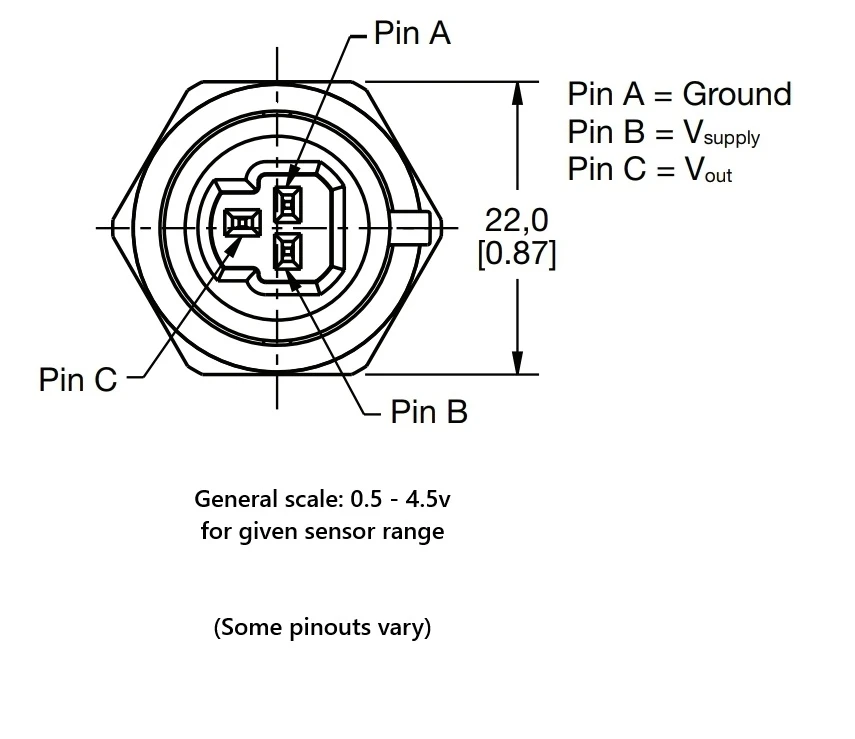

Delphi 3 pin sensor fitting guide

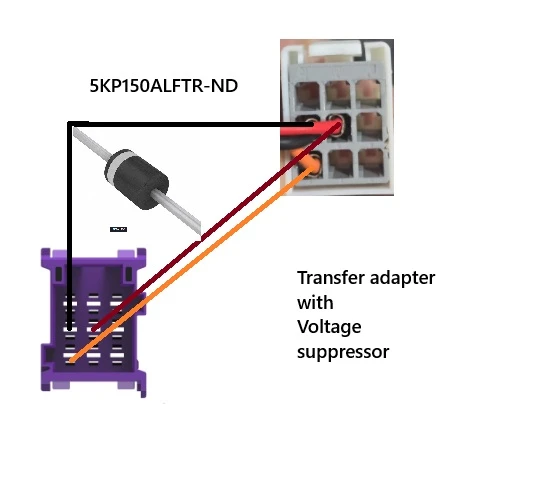

Stray voltage suppressor diagram

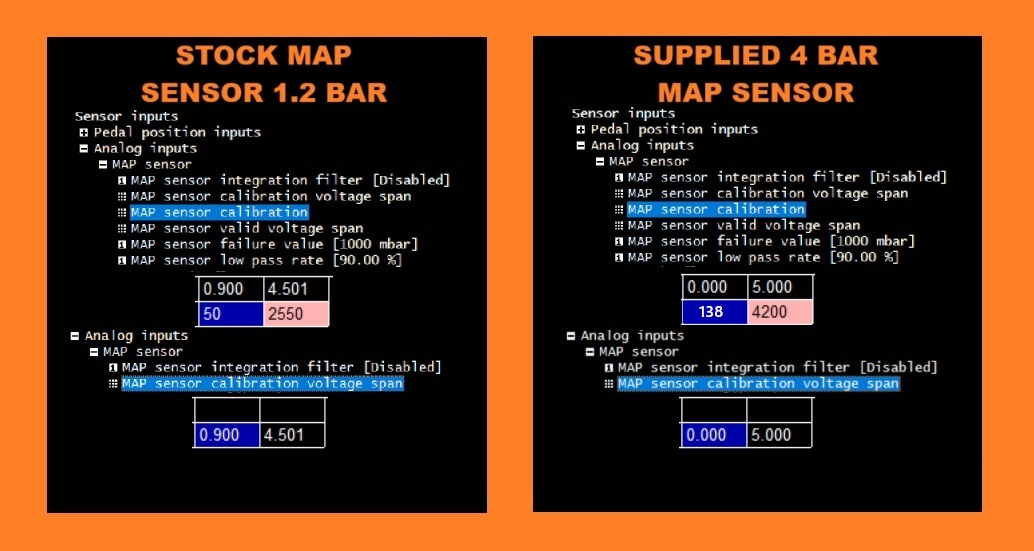

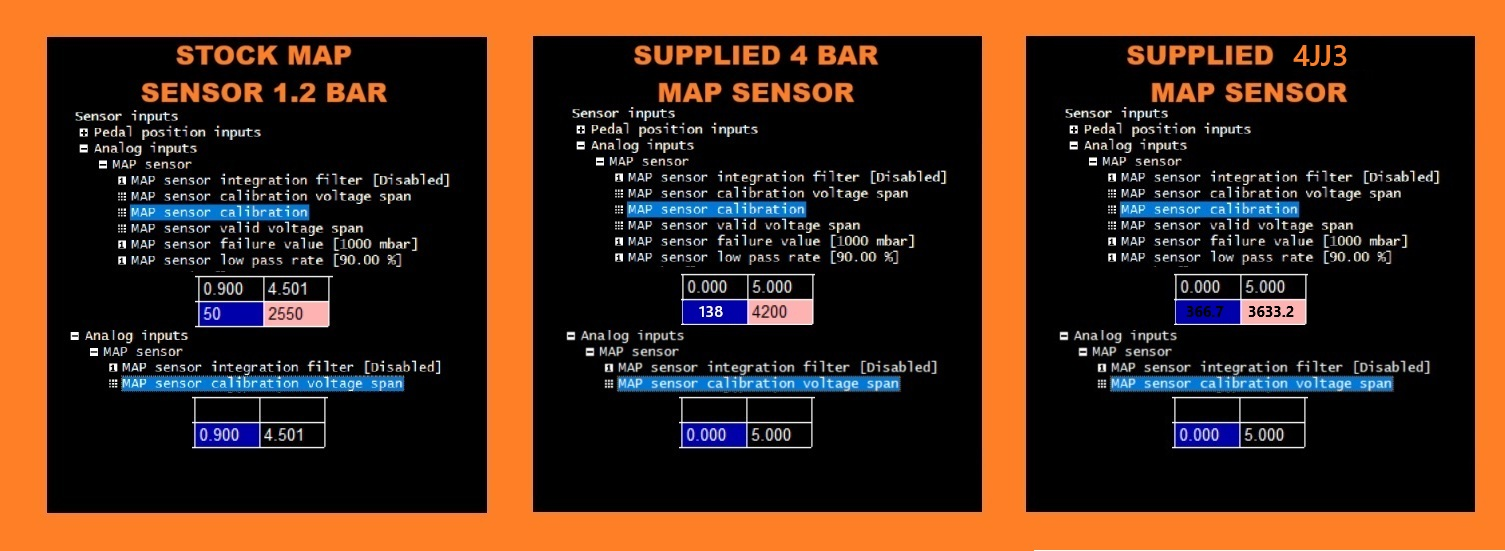

Map sensor settings for STOCK FTE sensor vs. supplied 4 bar map sensor:

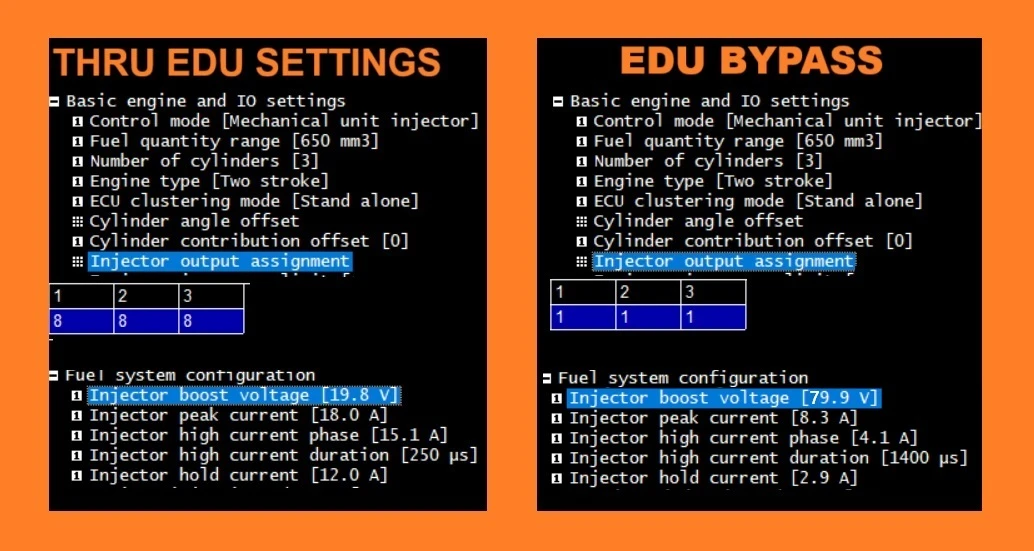

Max warrantable EDU output to FTE spill without BOOSTEC EDU BYPASS GIRDLE installed

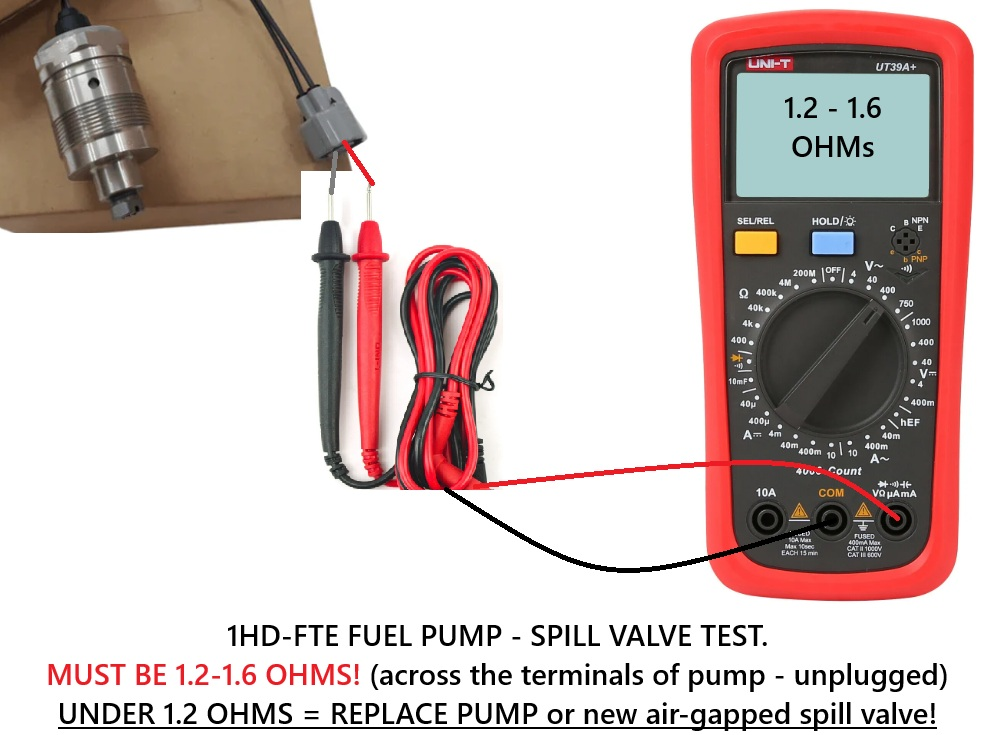

1HDFTE - Spill valve continuity test
We do not warrant any EDU-BYPASS ECU’s if the spill valve is not within the Toyota specs.
1.2 ohms is the absolute minimum we will accept. Anything under (Even 1.19 ohms etc) will result in no warranty on the ECU outputs / coil charging circuits and repairs are charged at an hourly or fixed rate!
This test MUST BE PERFORMED AND DOCUMENTED (Photo with Date/time on file name/meta data is acceptable) to keep ECU warranty intact for FTE EDU bypass operation.
You don’t want to be stuck on the side as much as we don’t want to be repairing failed outputs on ECU’s.
FTE Pump timing and injection timing
The more you know on the FTE platform, the better.
You read this FIRST on Boostec:
Pump timing is your primary injection timing in relation to crank angle.
Injection angle changes will have no impact on timing if its configured correctly,
The injection angle is purely the window that allows the timed pump pulse to occur within.
Advancing and retarding the injection timing will only move the “allowed” period for the pump timing.
Pump timing is the actual commanded start and end of injection for the programmed angle.
If you have a control platform like the Boostec ECU, you can clearly see the pump timing has an effect,
the injection timing has no effect if moved around, unless advanced or retarded too much, then it just reduces the fuel delivery because the window for fuel being allowed has moved.
We can demonstrate this by noting the sound change from the engine at idle, or performance wise while driving / on a dyno.
The only caveat on the pump timing and injection timing thing:
You can ramp in more fuel/faster on the cam if you adjust the injection timing window (Usually by advance of injection timing)
So for idle, if you need to clean it up and have more response, its possible to do so by adjusting the injection timing alone without getting pump rattle to achieve a similar result.
If injection time is later than optimal and the spill valve shuts when the pump is already climbing the cam, then the pump will sound louder as the pressure builds on a higher slope.
In regards to FTE pump case pressure:
Without pressure in the pump case, the pump has no way of controlling timing. Your pump timing will fall outside the optimal window and you will produce less fuel delivery. This is apparent on start up and when demanding a lot of fuel delivery in high rpm/torque.
Without lift pumps, you will struggle to achieve more than 350 whp above 3300 rpm. If you want to achieve the maximum torque from a FTE pump, you could try pressurizing the case itself with fuel for it to deliver extended volumes in high RPM where pressure drop in the case is a factor. Although this is an extremely rare way to achieve a high output, in competition, this is the winning formula for consistent fuel delivery in higher RPM and higher fuel volumes.

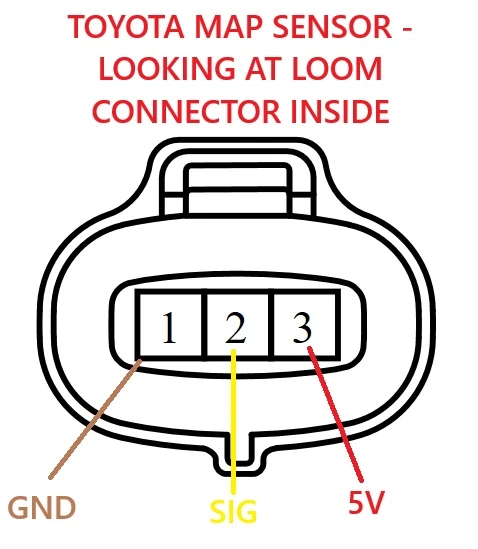

Toyota MAP sensor pinout

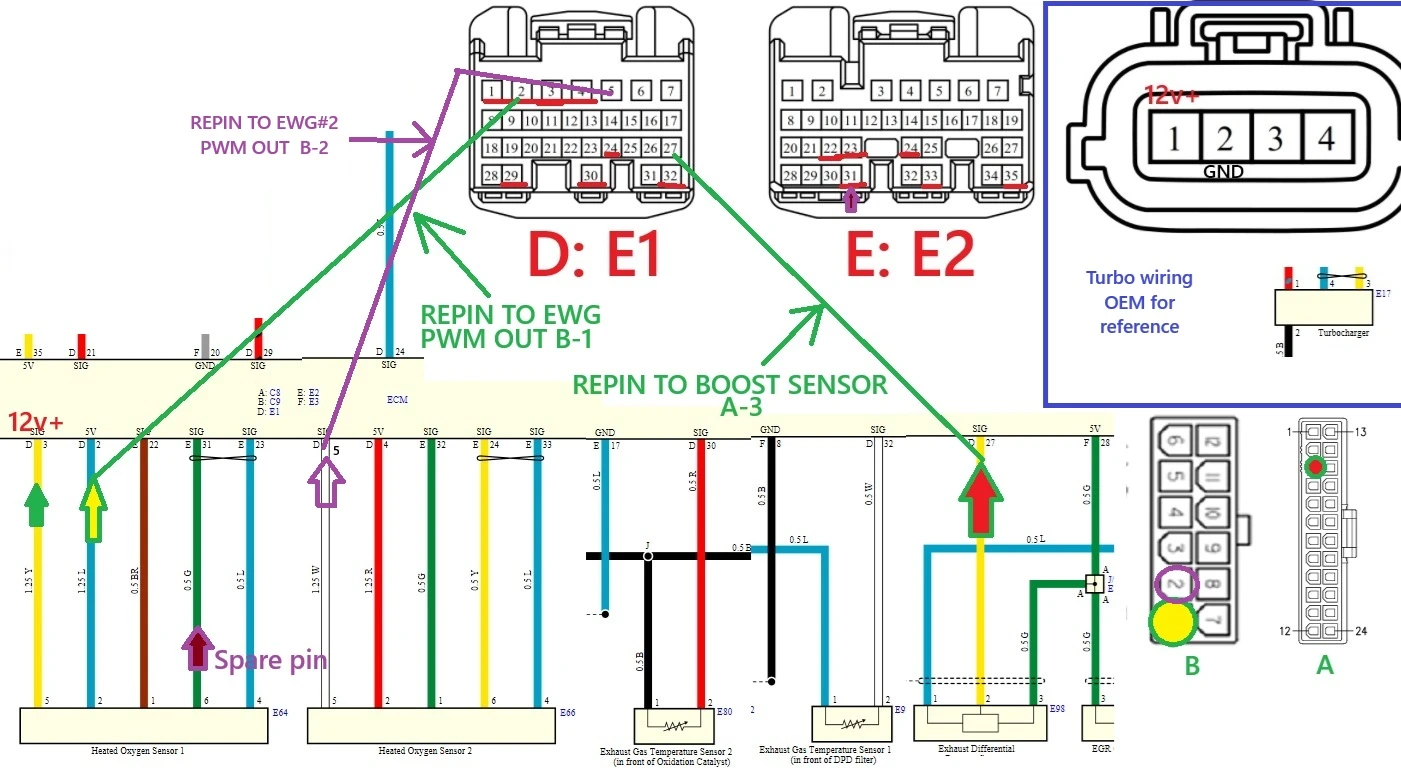

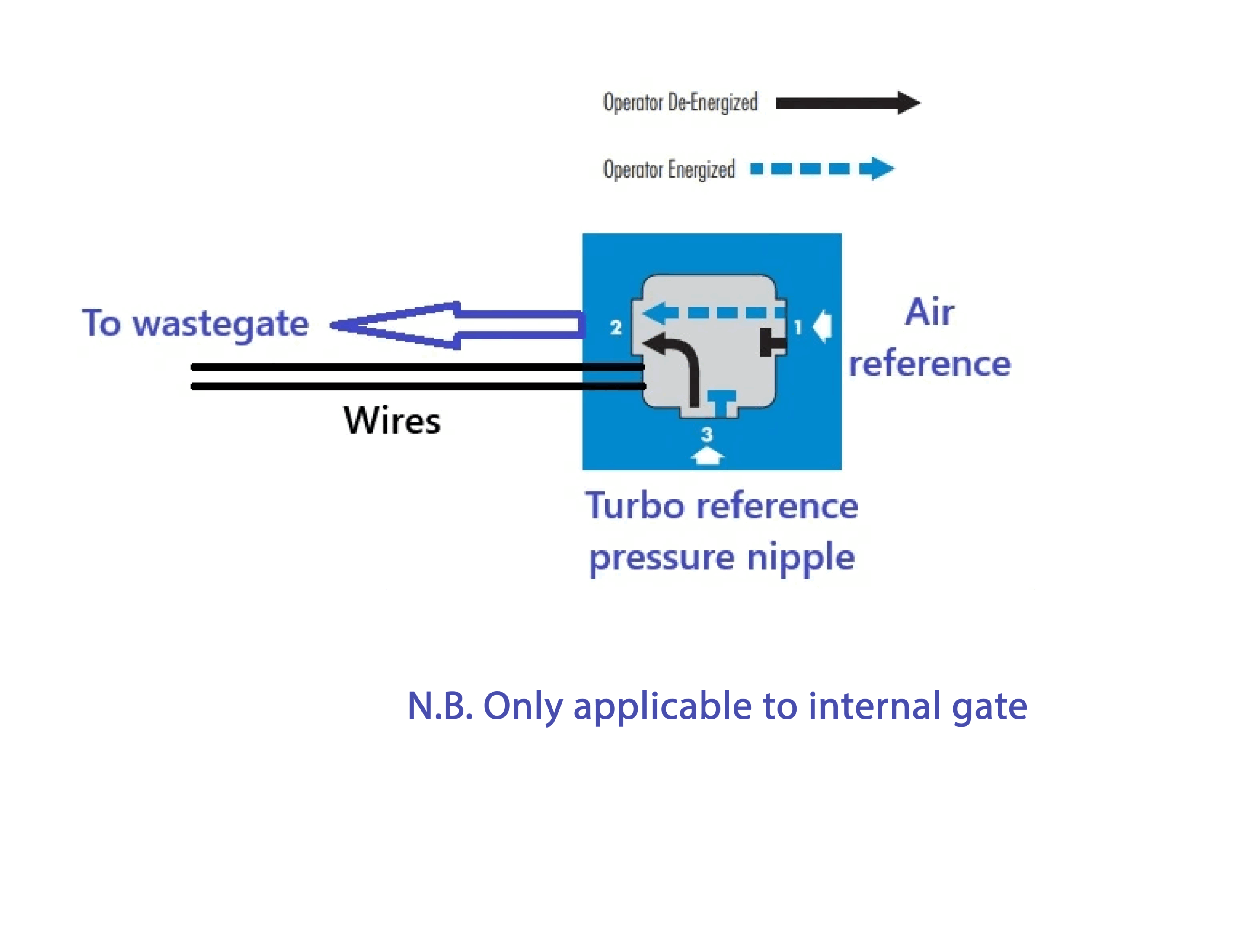

Boost control by BOOSTEC TCM in Isuzu DMAX / MUX for 2 x MAC valves

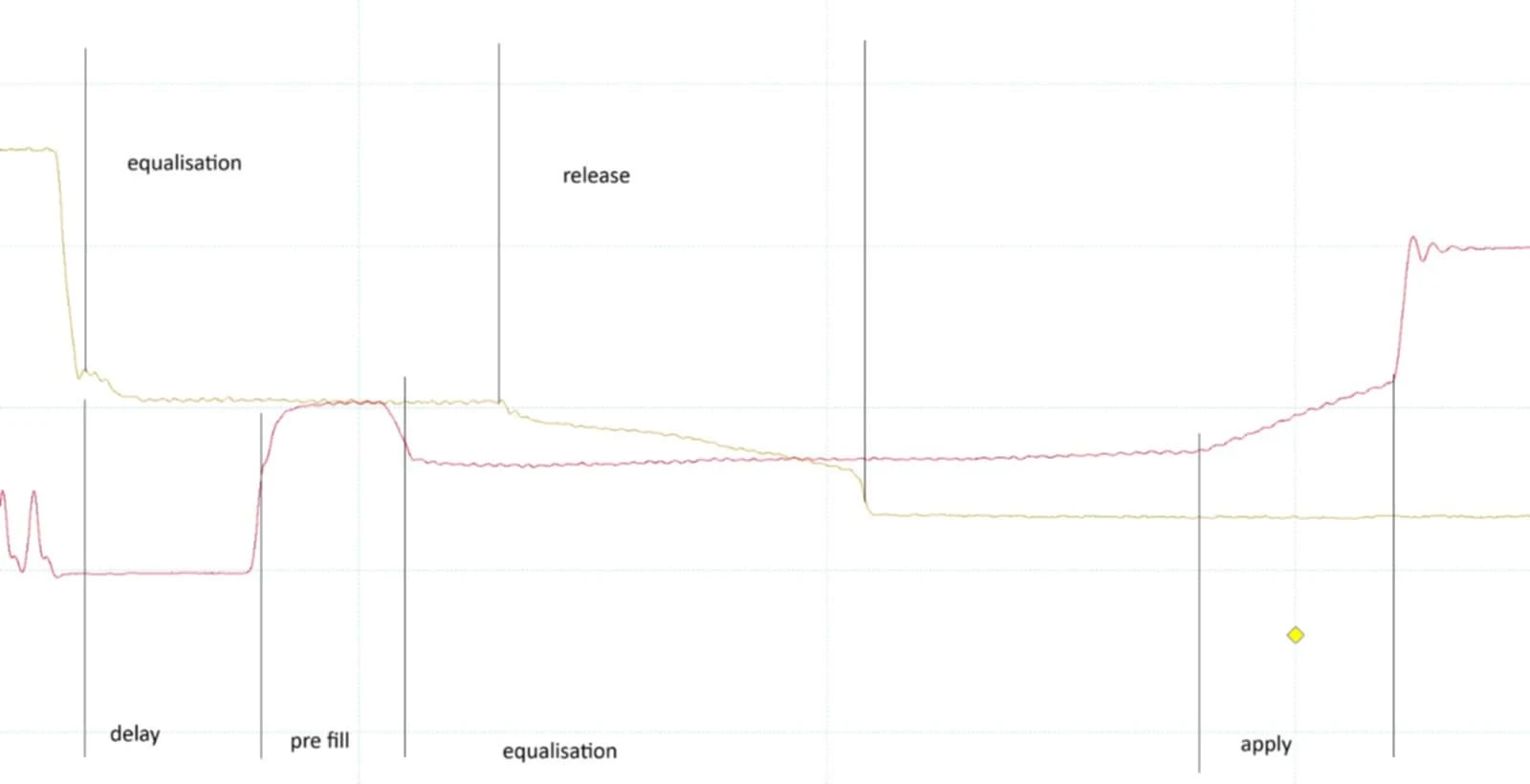

Transmission shift solenoid terminology
Gearboxes transfer adapters
OEM gearboxes
Bell face to end of H152 (before transfer case): 830mm
Bell face to end of A442f: 710mm
Bell face to end of 4L80e: 661mm
Transfer adapters
HF2A 400mm
8HP
10r80
Width: 449.14 mm
Height: 445.24 mm
Adapter to front 1vd: 38mm
Adapter to hf1a: 46mm
787mm for 10r80 full length to hf1a
temperature sensor calculation
| Temperature (°C) | KOhms (Ω) – Editable | Voltage (V) |
|---|---|---|
| -30 | ||
| -20 | ||
| -10 | ||
| 0 | ||
| 10 | ||
| 20 | ||
| 30 | ||
| 40 | ||
| 50 | ||
| 60 | ||
| 70 | ||
| 80 | ||
| 90 | ||
| 100 | ||
| 110 | ||
| 120 |

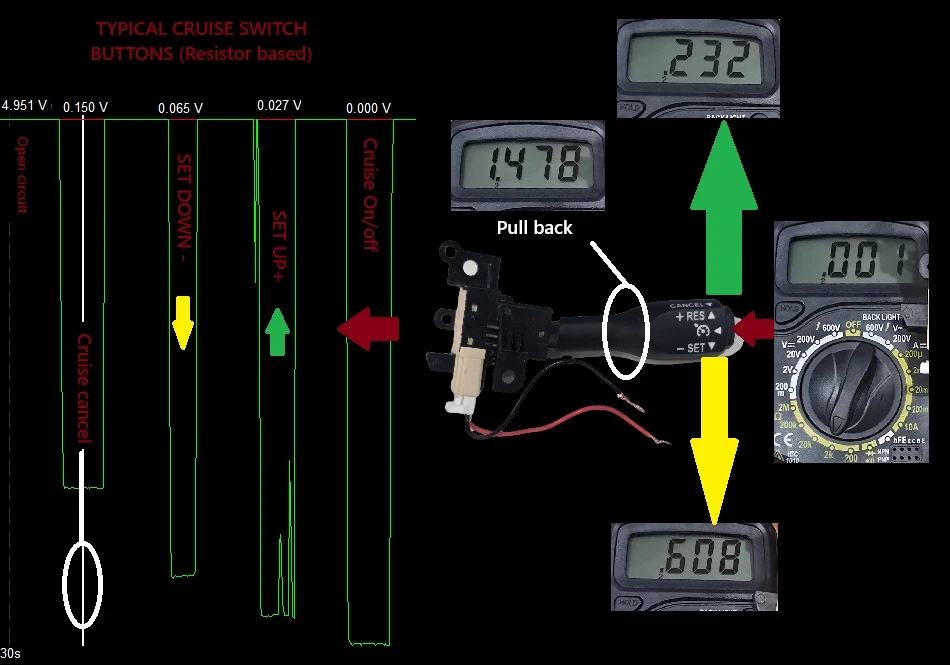

Typical cruise control inputs from 2 wire cruise
Red goes to analog signal input
N.B. Sometimes a pull up is needed to get clean differences in values
CRD typical injector configurations
CUMMINS ISB (stock)
DURAMAX LLY (stock - 100% overs)
DURAMAX LBZ (200-350% overs)
4JJ1 (100-300% overs)
1KD HP2 (stock - 100% overs)
M57 (stock - 100% overs)
4N15 (stock - 100% overs)
6.7 Cummins (Stock) *requires Boostec heatsink board*
OM61X - OM62X - OM64X (Stock - 100% overs)
OM665 (stock)
4M41 (stock - 100% overs)

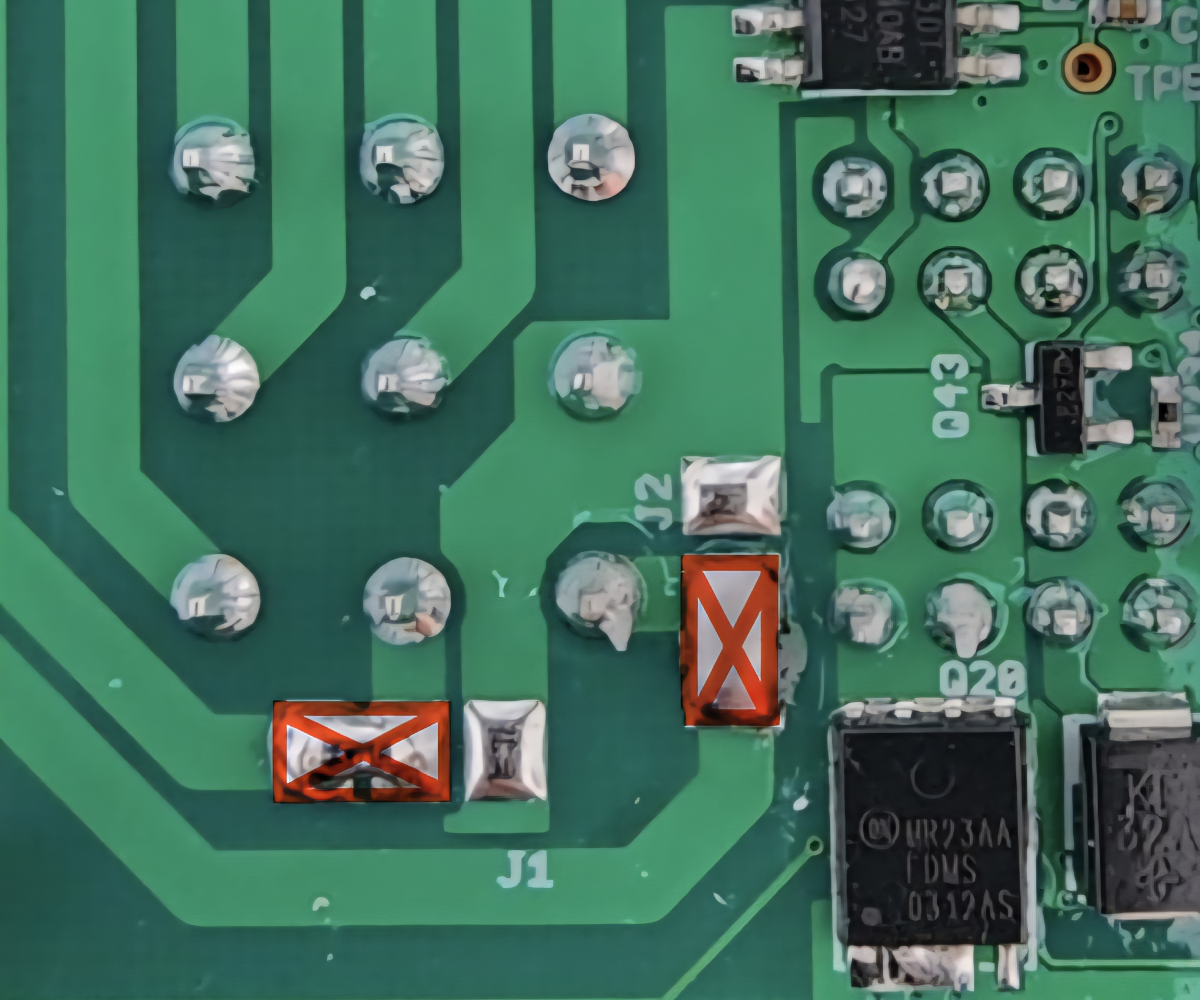

V8 injector jumper configuration for diesel

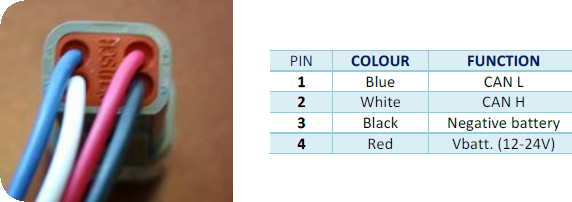

Blink marine keypad wiring diagram
Gearboxes transfer adapters
OEM gearboxes
H152 Bell face to end flange: 830mm
H152/H151 upgrade bell face to end flange: 740mm (* need to confirm)
A442f Bell face to end flange : 710mm
4L80e Bell face to end of flange: 661mm
AC60 Isuzu Bell face to end of flange: 690mm
10r80 Bell face to end of flange: 707mm
8hp bell face to end of flange: 640-704mm (640 is common of BMW 4×4 variant)
Transfer adapters
HF2A (flange to output face) 400mm
Isuzu AC60 HF (end pf shaft to end of shaft) 595mm
Isuzu AC60 HF (flange to output face) 465mm
8HP adapters
Adapter thickness Engine/gearbox FTE:57mm (Domi models)
Adapter thickness Tcase/gearbox FTE:80mm (Aussie CNC models)
Adapter thickness Tcase/gearbox FTE:38mm (Domi new gear models)
10r80 adapters
Adapter thickness Engine/gearbox FTE: 40mm
Adapter thickness transfer/gearbox hf1a: 46mm
10r80 full length with adapters and transfers 793mm

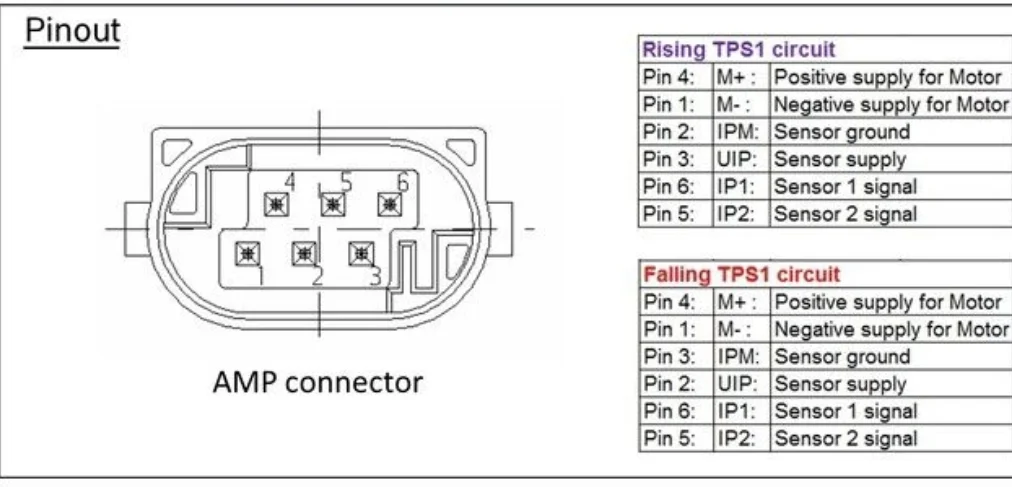

Bosch throttle body pinout

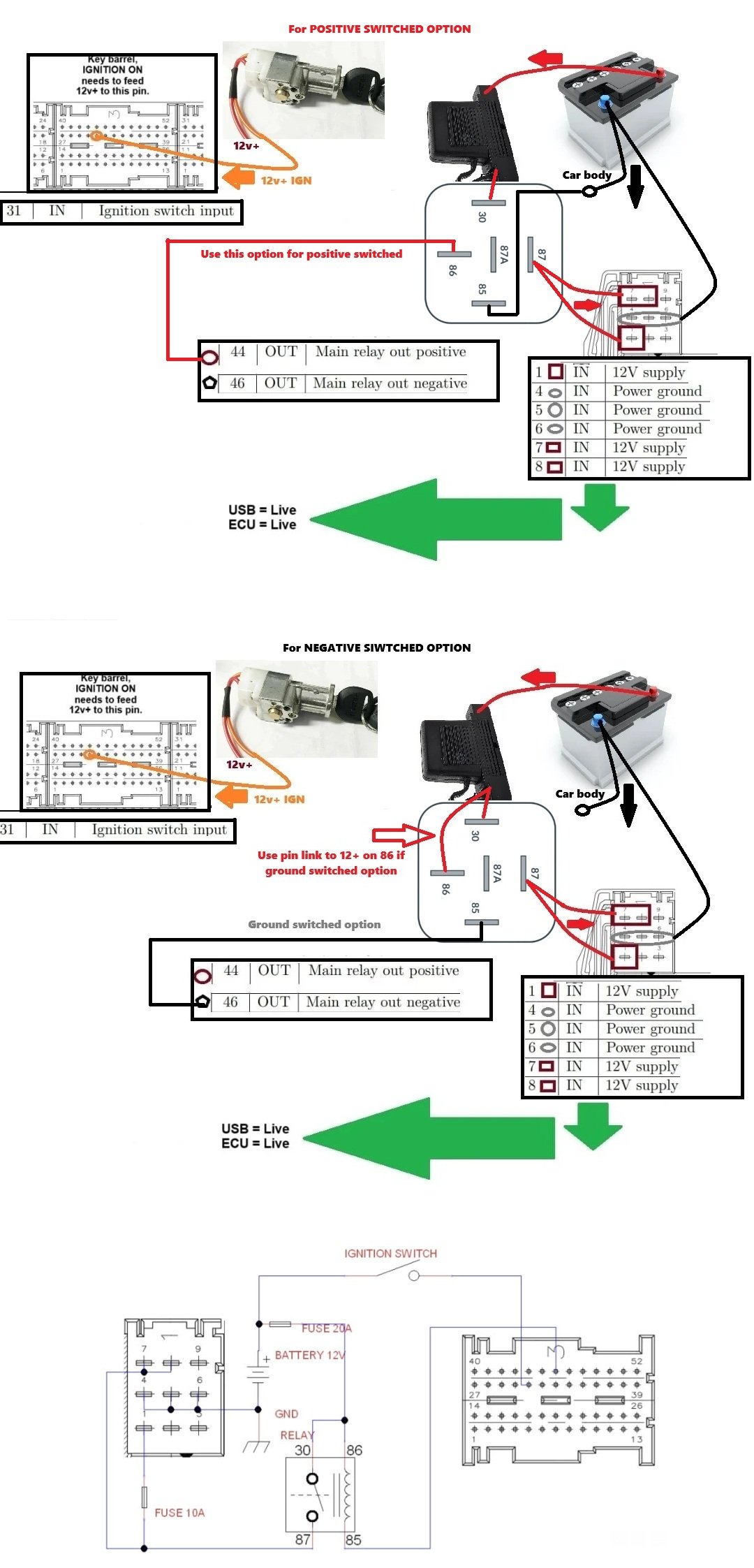

ECU BASIC POWER MUD MAP
DIESEL ECU BASIC POWER SETUP
For example, separate fuses for peripherals and ecu power are required on connector 1.
If you need to get your vehicle powered up in a basic form, this will work.
Please note, 24v systems need to be isolated from the 12v ecu system.
In such vehicles, the ECU usually requires its own supply from a DC-DC converter.
Please also note, some solenoids (such as fuel solenoids) may need to be suppressed from causing voltage spikes when the coils collapse when keyed off which usually results in the micro-relay for ignition to stick on. The ECU can absorb some of these, but it is not designed to tolerate high voltage on the power circuit.
Do not exceed 16volts.

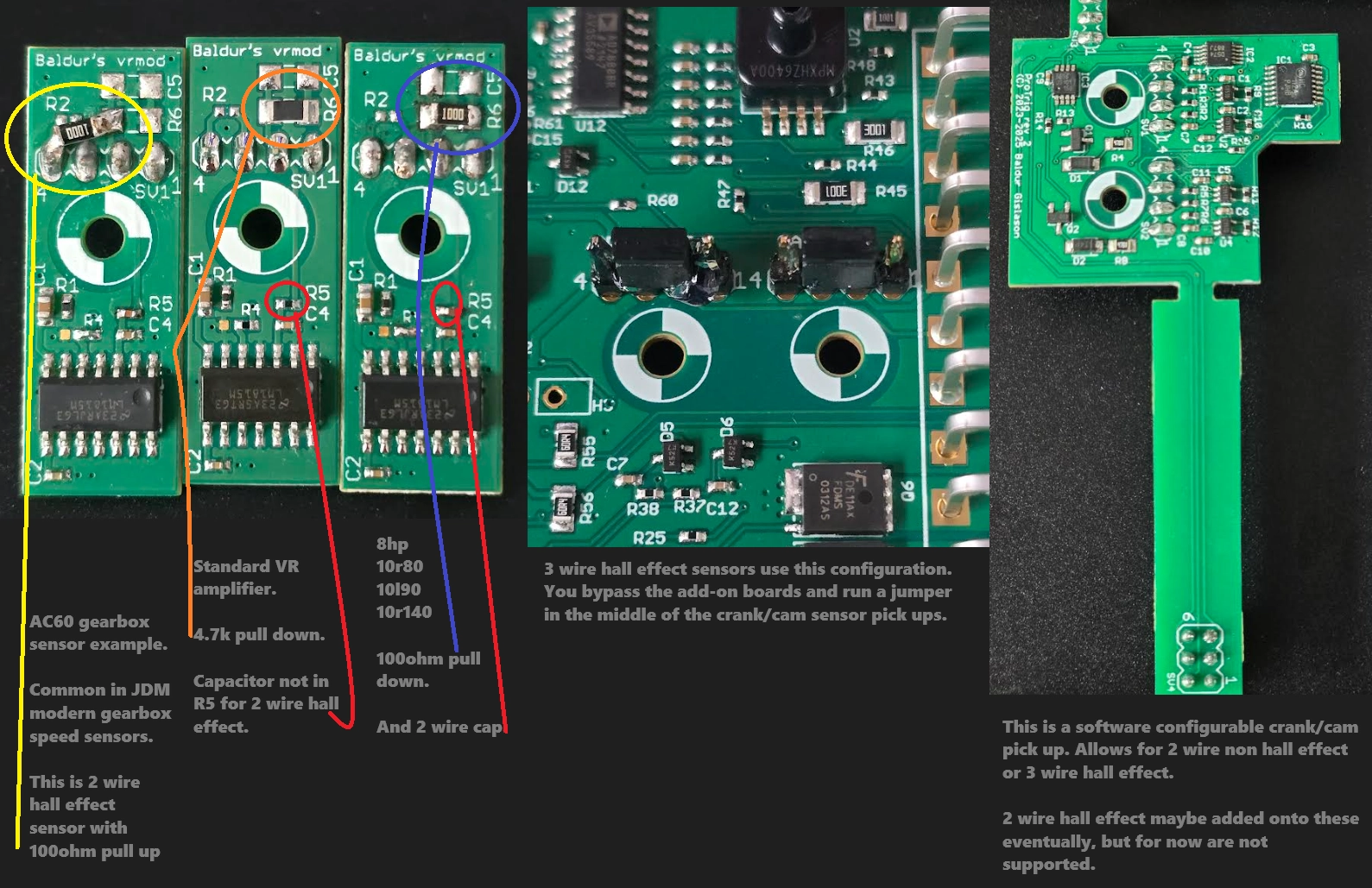

Crank, cam and gearbox shaft speed sensors:
This photo is of the typical speed sensor pick ups used for gearboxes and engines.
Typical PnP harness item descriptions

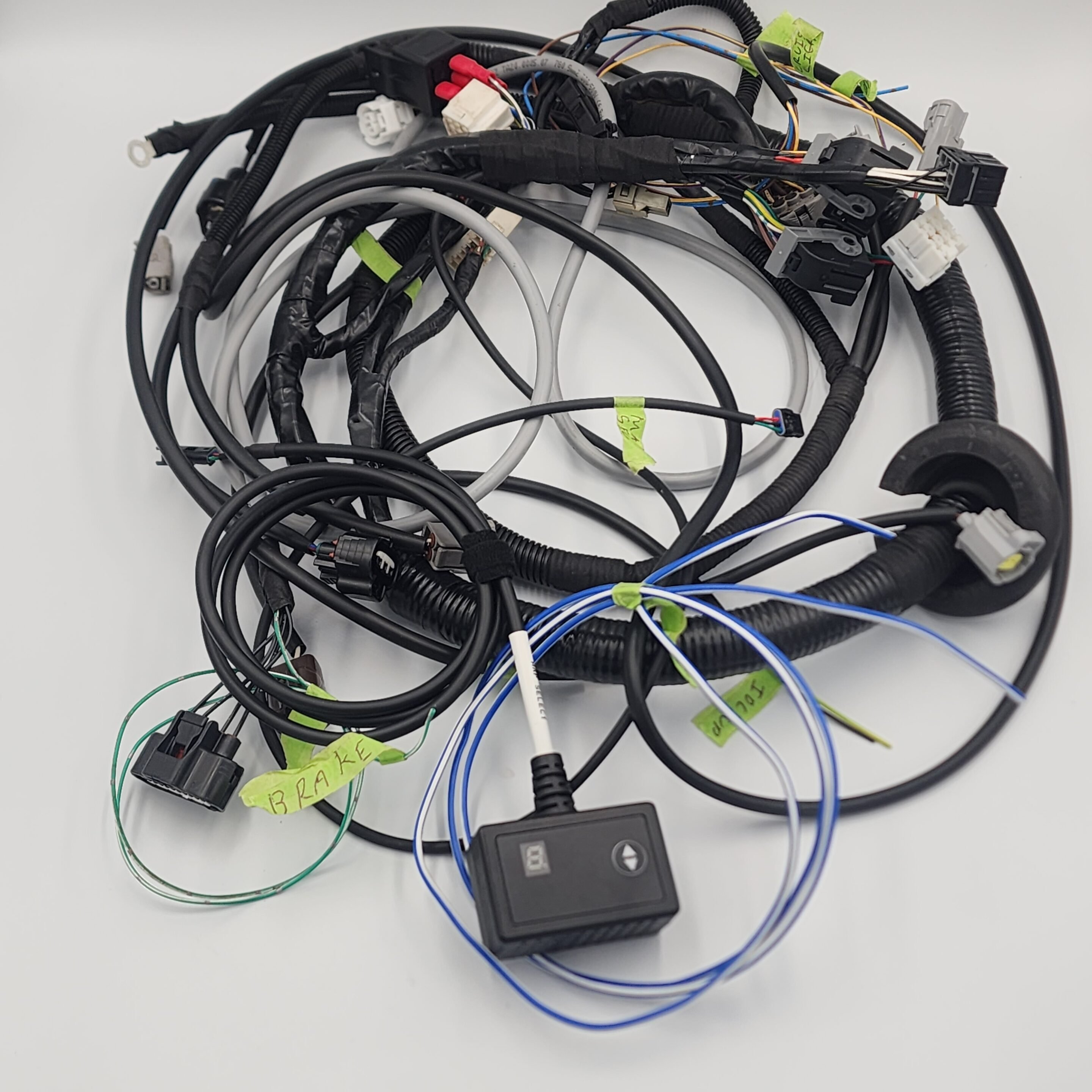

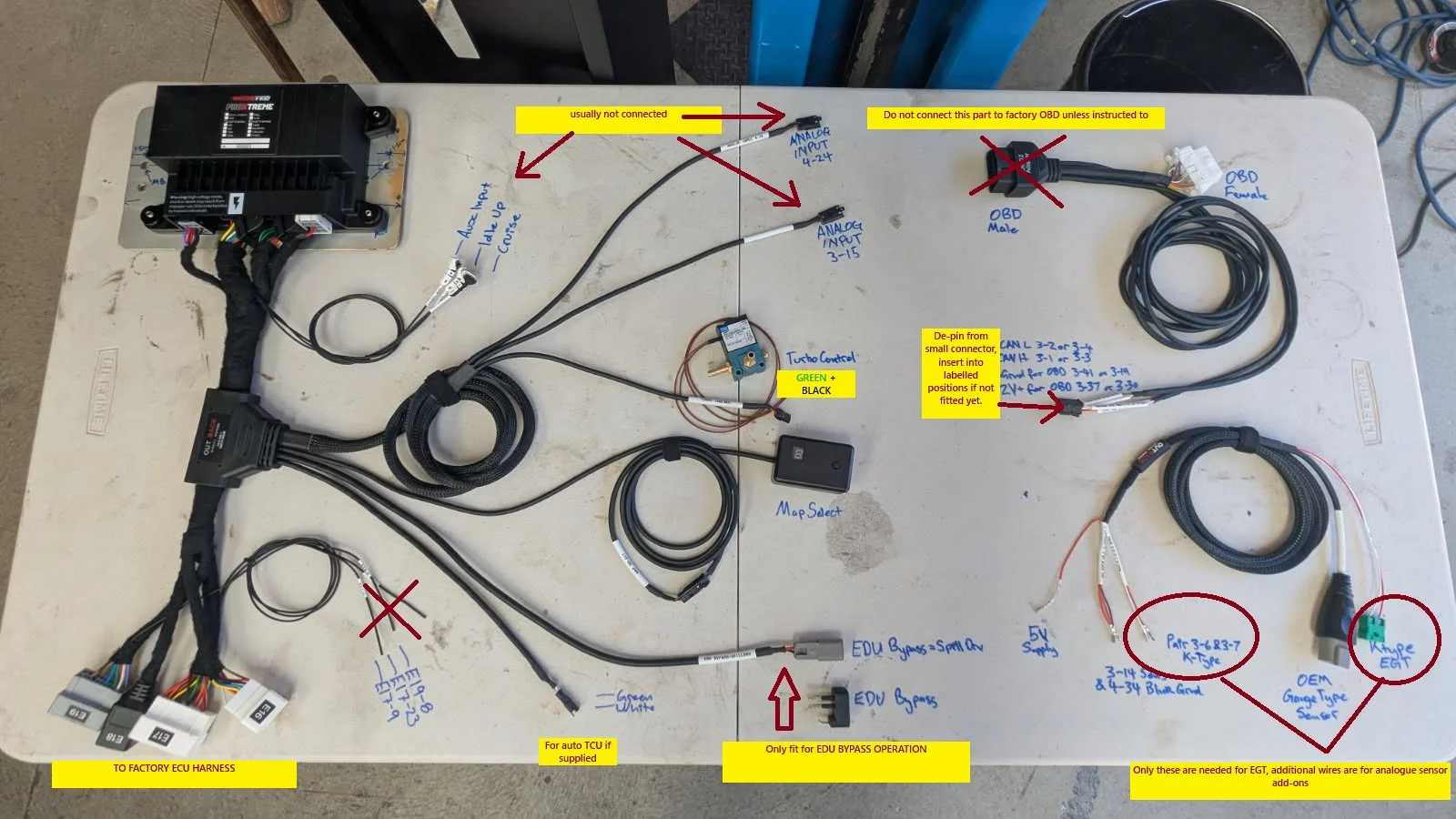

Typical “1st gen” plug and play vehicle specific harness.
